Level Gauges

We Are The Manufacturer And Supplier Of Level Gauges& Indicators Which Have The Following Types:

Teleflo Tubular Standard And Heavy Duty Top/ Side Mounted Level Indicators, Teleflo Transparent And Reflex Level Gauges And Indicators, Teleflo Pad Type Level Gauges Or Indicators, Teleflo Oilers And Oil Level Plug Indicators, Teleflo Boiler Level Gauges And Indicators, Teleflo Magnetic Level Indicators, Teleflo Dip Sticks, Teleflo Float & Cord Level Indicators, , Teleflo Level Controllers Etc.

We manufacture high grade Level Gauges. These are specifically designed to provide excellent performance and withstand high pressures to which it is subjected and the corrosive characteristics of the fluid. Our personnel also ensure that the process fluid does not leak through the glass fitting. These are ideal for measuring the levels of colorless liquids, interface of immiscible fluids, liquids with sub-zero temperatures and liquids with too much foaming.

Flat Glass Level Gauges

Our esteemed clients from different industry verticals are offered with a qualitative range of Flat Glass Level Gauges. These are specifically designed to provide excellent performance and withstand high pressures to which it is subjected and the corrosive characteristics of the fluid. Our personnel also ensure that the process fluid does not leak through the glass fitting. These are ideal for measuring the levels of colorless liquids, interface of immiscible fluids, liquids with sub-zero temperatures and liquids with too much foaming.

In industries, you may have to measure the levels of colorless liquids, interface of immiscible fluids, liquids with sub-zero temperatures and liquids with too much foaming. All these requirements can be met with by our latest types of flat glass level gauges.



Tubular Level Gauges

We provide high quality and most effective range of tubular level indicators that suit various industrial applications. We also offer wide varieties of gauge glass protectors. Various types of tubular level gauges available with us are :

BCO - Offset Connection Tubular gauges Our BCO tubular gauges are superior in quality that are manufactured with a pair of auto shut off ball check valves with offset and union construction. Because of their simple design, and their ability to work without additional isolation valves they can be installed very easily and cost-effectively.

The innovative offset construction of the valves enables glass tube's to be replaced while in use. Whenever the glass tube breaks the ball check arrangement automatically closes the valve seat and prevents wastage of any fluid. Glass tube protection in the form of " Tie Rods" or "Pipe Shield" is provided.

HDO Heavy Duty Channel Protector Gauges Our highly effective tubular level gauges come with heavy wall glass tubes with 3 mm thick machine made channel protector. Designed to endure extreme conditions these valves offer very high durability.



Heavy Duty Tubular Level Gauges

Our superior quality transparent level Indicators are equipped with heavy valve glass tubes fitted. These valve glasses are fixed with a heavy duty metallic frame, which is made from min. 3mm thick channel box type protectors. We can also provide auto-shut-off ball check, needle or ball valve isolator as an integrated part with these indicators, if required.
These are designed specially to endure to extreme conditions and they can easily withstand alignment stress. Our premium indicators are available in two varied models : Side Mounted type and Top Mounted type.

Side Mounted Heavy Duty Indicators:
Our side mounted indicators are designed keeping in mind the extreme conditions they would have to face. They are manufactured using very strong materials and hence also provide prolonged durability. These indicators have built-in glands and we can also provide valves if required.

Process Connection Flanged on Screwed union
Glass Tube Borosilicate, Heavy wall
Packing PTFE Gland
Guards Rectangular box type change; machine made from min. 3 mm C.S. Sheet
Scale Bakelite of Acrylic engraved
Least Count 0.5 cms. Or as per request
Rating 5 kg/cm² to 15 Kg/cm² depending on length
CC Distance Max. 6 m
M.O.C (Contact parts) M.S, C.S., SS 304, SS 316, P.P., HDPE, PVC, Teflon, F.R.P., and any other on request.

Top Mounted Level Indicators:
Top mounted level indicators offer high levels of security to the storage tanks. Since they are mounted at the top of the tank, it reduces the risk of hazardous fluids getting spilled through any leakage. Theres a float that is channelized in the tank by a perforated pipe and a sealed glass tube. Float steam tip has an in-built pointer, which correctly indicates the level.


Mounting Flange Standard 4" NB or 6" NB
Float SS304, SS316, P.P., HDPE, PVC, TEFLON, Glass, etc.
Guide Pipe M.S., C.S., SS304, SS316 with Collar, HDPE, P.P., P.V.C. TEFLON, FRP, etc.
Indicator P.P., PVC, or Teflon.
Scale Acrylic or Bakelite with least count of 0.5 cm or as per request.
Tank Depth 3.5 to 5 meters

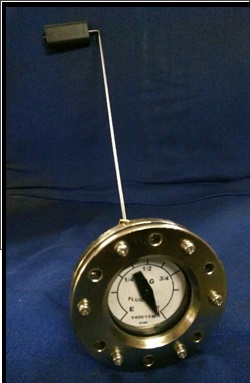

Magnetic Liquid Level Gauges

Also Called as Float and Dial Gauge, Fuel Gauge, Dial Level Gauge, Oil Level Gauge, Lever Dial Gauge or Magnetic Level Gauge
Components:
float, float arm, inner and outer shaft, driver and follower permanent alnico magnets, bevel gear sets (optional). Dial gauge and needle indicator.

Operation:
The float rises and falls in liquid tank and float arm drives a bevel gear arrangement as the float rises or falls. The bevel gear unit is connected to driver magnet and in turn moves the follower magnet outside of tank wall. Finally, the dial gauge needle is connected to follower magnet and moves in unison with float and gives proportionate response to tank level.
